Car Truck Reverse Parking Sensor System

EMV-603
Say goodbye to rear-end accidents with our Parking Sensor Reversing Detection Alarm!
minimum order
1 set
Country of Origin
Shenzhen
Quantity
Contact Now
add to cart

Feature:

1. The main unit can be connected to the reversing light, and it will work automatically when reversing. The rear four probes send out ultrasonic signals to detect the object. The distance of the detected object is displayed on the crescent screen as a number and alarms. The closer the object, the faster the alarm sound
2. distance, azimuth, four-segment alarm sound, rear parking reversing sensor
3. Detection distance: 0--3 meters, volume: 65DB, Reverse parking sensor

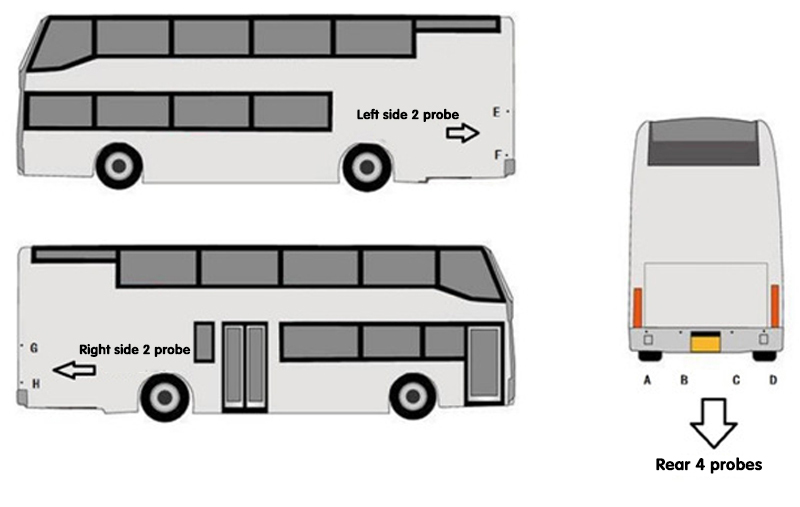

4, 4 probes (the probe cord is 4 meters long with waterproof interface), Car parking sensor
5. Wide power supply voltage, 12-32V available, rear parking reversing sensor
6. Waterproof IP67 probe and host are all waterproofed, Reverse parking sensor
7. Operating temperature: -40°----+80°High and low temperature resistance, Car parking sensor
8. The display aviation cable is 10  meters long as standard, and 10-20 meters are optional, rear parking reversing sensor
Car parking sensor, Reverse parking sensor, rear parking reversing sensor
Rear parking sensor
Car parking sensor, Reverse parking sensor, rear parking reversing sensor
Our Reverse Parking Sensor System features ultrasonic technology that detects obstacles in the rear of the vehicle and alerts the driver through visual and audible warnings, ensuring maximum safety during parking and reversing. The Car parking sensor system is easy to install and compatible with most vehicles. With this user-friendly device, you'll never have to worry about accidental collisions ever again. Perfect for novice and experienced drivers alike, our Parking Sensor Reversing Detection Alarm Reverse parking sensor is a must-have safety accessory that saves money, time, and stress.
Front parking sensor

Parking sensor system
Car parking sensor, Reverse parking sensor, rear parking reversing sensor
Specifications:
Host Parameters
Operating Voltage:DC 12V~32V
Working Current:20mA~200mA
Ultrasonic Frequency:40K±1K
Operating Temperature:-30℃~+80℃
Waterproof:IP67
Dimension:162mm*87mm*46mm
Car parking sensor, Reverse parking sensor, rear parking reversing sensor
Probe Parameters
Center Frequency:40kHz±0.5kHZ
Emission Sound Pressure Level:>110db
Receive Sensitivity:>-70db
Aftershock Time:≤1.6ms
Full Angle:60°±10%
Y-axis Directionality:50°±10%
Free Capacitor:2000pf±10%
Input Voltage(MAX):140V
Stable Job:-30℃~+80℃
Car parking sensor, Reverse parking sensor, rear parking reversing sensor
Vehicle detection

Obstacle detection

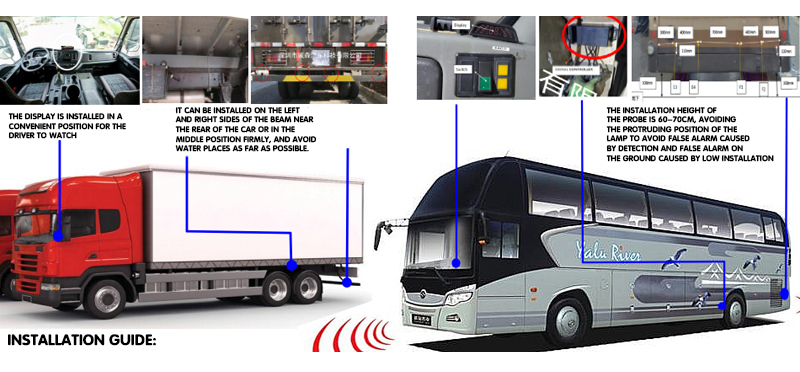

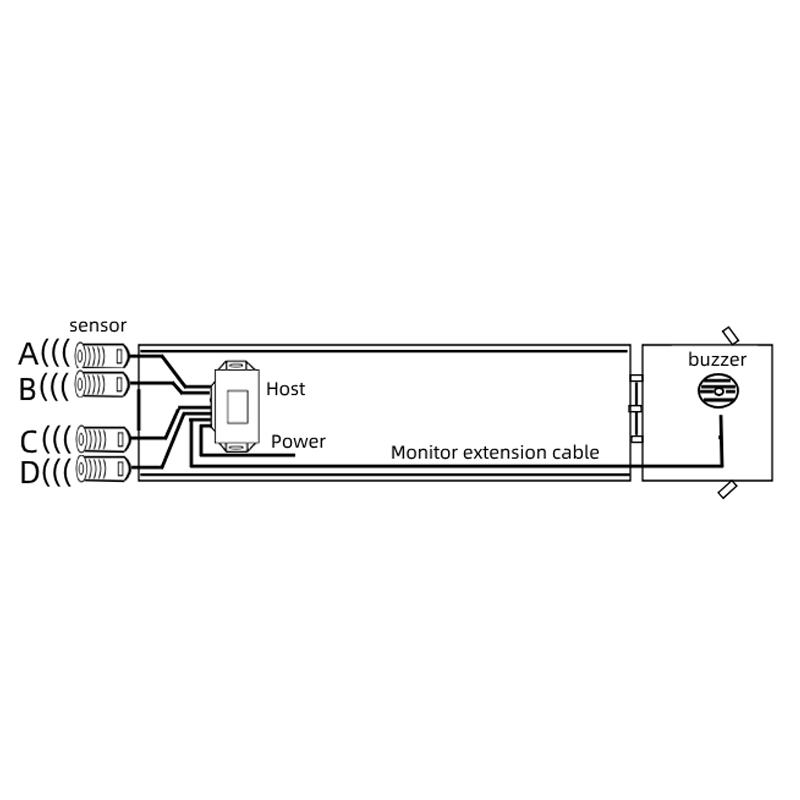

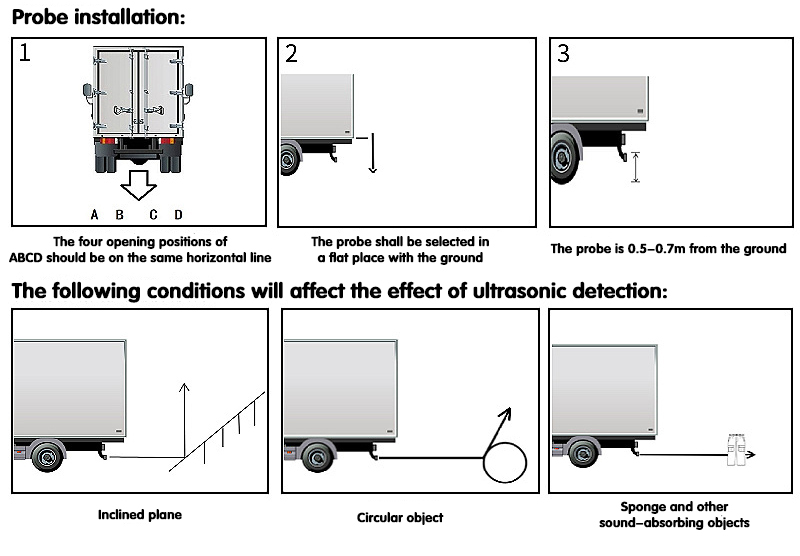

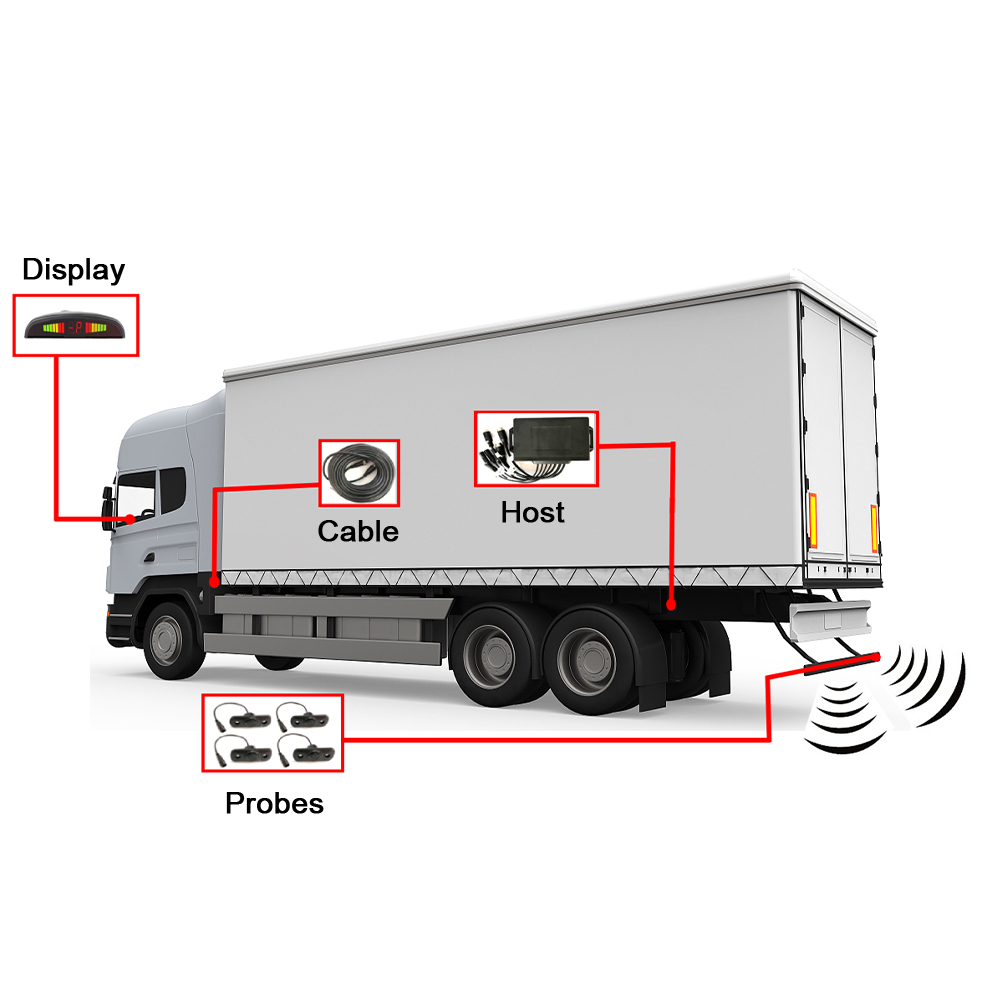

Installation diagram：


Collision avoidance
