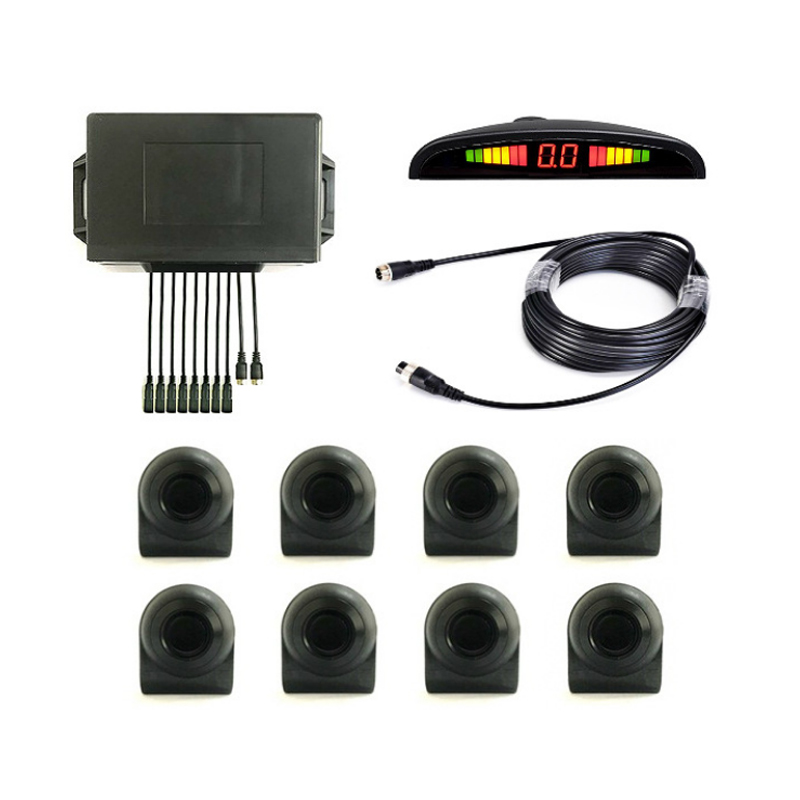

Blind Spot Rear View 8 Probes Waterproof Ip67 Transceiver Reverse Truck Parking Sensor System
EMV-608
Wired Blind Spot Rear View 8 Probes Dc 36v Ultrasonic Led Alarm Waterproof Ip67 Transceiver Reverse Truck Parking Sensor System
minimum order
1 set
Country of Origin
Shenzhen
Quantity
Feature:
1. The main unit can be connected to the reversing light, and it will work automatically when reversing. The rear four probes send out ultrasonic signals to detect the object. The distance of the detected object is displayed on the crescent screen as a number and alarms. The closer the object, the faster the alarm sound, blind spot parking sensor
2. Crescent display, distance, azimuth, four-segment alarm sound on the screen, rear view blind spot system
3. Detection distance: 0--3 meters, volume: 65DB, rear view parking sensor system
4, 8 Digital probes (Probe extension cable (4M)*4+Probe extension cable (15M)*4), blind spot parking sensor
5. Wide power supply voltage, 12-32V available, rear view blind spot system
6. Waterproof IP67 probe and host are all waterproofed, rear view parking sensor system
7. Operating temperature: -40°----+80°High and low temperature resistance. blind spot parking sensor
8. The display aviation cable is 15 meters long as standard, and 10-20 meters are optional, rear view parking sensor system
2. Crescent display, distance, azimuth, four-segment alarm sound on the screen, rear view blind spot system
3. Detection distance: 0--3 meters, volume: 65DB, rear view parking sensor system
4, 8 Digital probes (Probe extension cable (4M)*4+Probe extension cable (15M)*4), blind spot parking sensor
5. Wide power supply voltage, 12-32V available, rear view blind spot system
6. Waterproof IP67 probe and host are all waterproofed, rear view parking sensor system
7. Operating temperature: -40°----+80°High and low temperature resistance. blind spot parking sensor
8. The display aviation cable is 15 meters long as standard, and 10-20 meters are optional, rear view parking sensor system
blind spot parking sensor, rear view parking sensor system, rear view blind spot system
Specifications:
Host Parameters
Operating Voltage:DC 12V~32V
Working Current:20mA~200mA
Ultrasonic Frequency:40K±1K
Operating Temperature:-30℃~+80℃
Waterproof:IP67
Dimension:162mm*87mm*46mm
Ultrasonic Frequency:40K±1K
Operating Temperature:-30℃~+80℃
Waterproof:IP67
Dimension:162mm*87mm*46mm
Probe Parameters
Center Frequency:40kHz±0.5kHZ
Emission Sound Pressure Level:>110db
Receive Sensitivity:>-70db
Aftershock Time:≤1.6ms
Full Angle:60°±10%
Y-axis Directionality:50°±10%
Free Capacitor:2000pf±10%
Input Voltage(MAX):140V
Stable Job:-30℃~+80℃
Emission Sound Pressure Level:>110db
Receive Sensitivity:>-70db
Aftershock Time:≤1.6ms
Full Angle:60°±10%
Y-axis Directionality:50°±10%
Free Capacitor:2000pf±10%
Input Voltage(MAX):140V
Stable Job:-30℃~+80℃
Installation diagram：
blind spot parking sensor, rear view parking sensor system, rear view blind spot system
