4ch Bsd Touch Screen FHD Split AHD Vehicle DVS Blind Spot Detection Camera System

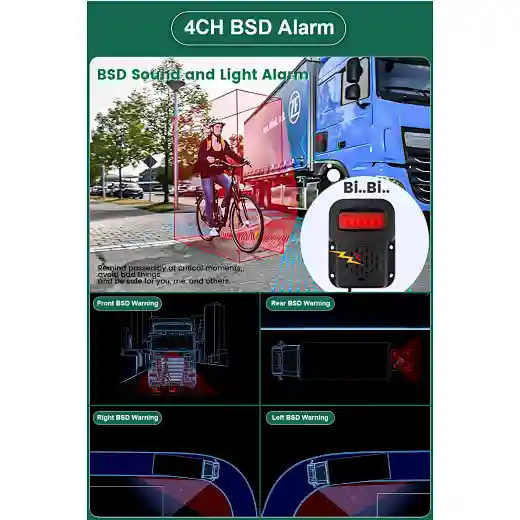

Many drivers of large vehicles don't pay attention to the vehicles & people behind them when changing lanes or turning. BSD Blind spot detection system effectively reminds the drivers of the situation around their vehicles, greatly reducing accidents.
The AI Monitor BSD Camera System including:
*1 pcs 10.1 inch touch display 4 channel monitor
*2pcs HD AHD waterproof cameras,1pcs dual lens camera
*4pcs Extended Cables
Specification:
Parameter | Model | 4 Camera Monitor system |
Solution | SA210 | |
Screen | LCD TFT | |
Display | 10.1 inch （9：16） | |
Resolution | 800(H) x RGB x1280(V) | |
Brightness | 400 | |
Visible range | 125.28(W) x222.72(H) | |
Viewing angle | 85/85/85/85(L/R/U/D) | |
Power | DC12V -24V | |
Power | 6W | |
Interface | AV1/AV2/AV3/AV4 | |
System | AHD720P/1080PPAL | |
Stock | 128G | |
Max.BSD Distance | 6M | |
Language | Chinese/English/Korean/Japanese | |
Operating mode | Touch/Voice control/Keypad/IR | |
Operation temperature | - 2 0 ～7 0 ℃ | |
Size | 10.1” | |
Pixel pitch | 0.058(H) x 0.174(V) | |
Response time | 25ms (typ.)(Tr+Tf) | |
interface type | MIPI | |
Touch | Open and close the screen; Open the front road, open the back road, open the left road, open the right road; View All |
